Hydraulic Moulder，Provide quotations for various iron art gates and offer professional services to enterprises related to iron art.

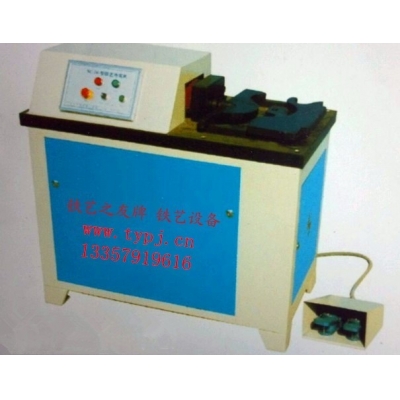

TYZY-DY-16 Hydraulic Moulder
The electric machine has three functions, namely bending arc, straightening and bending angle. It can extrude square steel, round steel and flat iron into round, arc, angle and some different shapes in one time. The electric appliance part is provided with timing control, and the automatic reset ensures the consistency of the angle of the folding, both single production, but also can be mass production. The processing capacity of the equipment is very large, can processing 16*16mm square steel ,50*8mm flat iron , high production efficiency, per hour can be angular 400 pieces, the use of a wide range, easy to operate, the applicability of the good. Is the iron art processing machinery and equipment indispensable.
技術參數 Technological Depiction
TYZY-DY-16 液壓成型機 Hydraulic Moulder | |||
Working Ability | Flat Iron :≤10mm*50mm | ||
Round Steel: ≤Ф16mm | |||
Square Steel : ≤16mm*16mm | |||
Working Pressure | Max:20mp | ||
Working Stroke | Max:250mm | ||
Motor Performance | Power:7.5KW Voltage:380V | ||
Main Features | 1.The machine can finish the moulding and processing of heteromorphosis iron craftwork with good consistency, and can process part in batches and high efficiency. 2. Step less pressure adjustment, stable operation of machinery, to ensure the effectiveness of its work. 3. It has manual control and foot switch, it can be operated conveniently and reliably. 4.Can processing 16mm*16mm square steel. 5. Per hour can be angular 300 pieces of square steel. | ||
Packing Dimension | L×W×H=1300mm×700mm×1400mm | ||
N.W.(kg) | 780 | G.W.(kg) | 850 |
The iron art guardrail factory is a relatively professional processing enterprise for iron art guardrails. The company was established in 1999. It specializes in producing various iron art doors and windows, iron art enclosures, iron art handrails and balustrades and other related iron art products.
